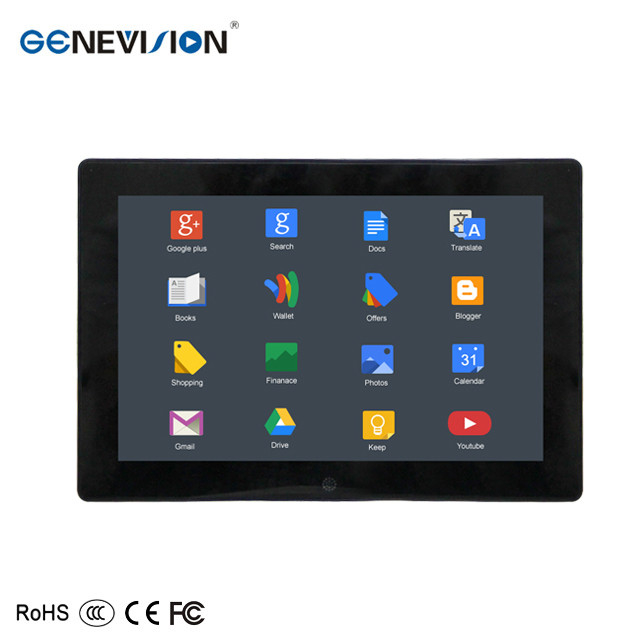

16:9 LCD Touch Screen Panel, High Contrast 1000:1 for Kiosk
Description:
1,Outer shell is made by extra quality metal material, Color for Outer Shell: Shinning Black.
2, With 3mm thickness tempered glass as protection layer against the sureface of LCD screen.
3,Full New LG or Samsung ( Made in Korea) A Grade Stardard LCD Panel.
4,Support SD card or USB port at one player; it is optional for VGA Port, S-video port and port.
5,Safely locking system function to avoid flash memory card and advertising playing contents being taken away, also can be protected by password.
6, With USB update feature; support functions between the card and card copying files (such as CF card to SD card,or SD to CF card etc.); support U-copy, conveniently and quickly updating target content, more details please visit user manual.
7,Playing advertising program automatically and circular; support media format: JPEG (JPG), MP3, AVI, MPEG1, MPEG2, MPEG4, VOB and DIVX (5.0/6.0).
8,Playlists support functions, can set different folders, copy all target files to those different folders, system would default to play your target file one by one.
9,Capable of setting rolling caption on the screen, playing rolling caption in the advertisement program.
10,Build-in clock and calendar function in the system of player.
11,Support 5 groups of auto power-on/off timer, able to set those 5 groups of time one day and 7 days in one week.
12,Support shockproof and dustproof function.
Specifications:
|
Technical Parameter for LCD Panel
|
Panel Size
|
19.1inch real color LCD screen
|
|
Aspect Ratio
|
16:9
|
|
Active Area
|
379mm(H) x 304mm(V)
|
|
Max. Resolution
|
1280 x 1024
|
|
Dot Pitch
|
0.294mm(H) x 0.294mm(W)
|
|
Number of Color
|
16.7M
|
|
Brightness
|
500cd/m2
|
|
Contrast Ratio
|
1000:1
|
|
Responsive Time
|
8ms
|
|
Panel Life
|
above 50000 hours
|
|
Storage Medium
|
Flash memory card
|
2gb to 36gb for the capacity
|
|
Support Ad files
|
Video formats
|
MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1)
|
|
Audio formats
|
MP3
|
|
Photo formats
|
JPG
|
|
OSD Language
|
English, Chinese, French, German, Italian, Spanish,Arabic
|
|
Audio output
|
stereo L/R, 5W*2, 8Ω
|
|
Power supply
|
AC 110V - 240V, 50/60HZ
|
|
Storage Temperature
|
-7 to 65 Celsius degree
|
|
Normal Working Temperature
|
-5 to 65 Celsius degree
|
Applications:
|
Business Organizations
|
supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
|
|
Financial Organizations
|
Banks, negotiable securities, funds, insurance companies, pawnshops;
Non-profit Organizations: Telecommunications, post offices, hospital, schools;
|
|
Public Places
|
subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
|
|
Entertainments
|
Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
|
The Technical Parameter for infrared touchscreen Panel
|
Touch Max Resolution
|
4096×4096
|
|
Transparency
|
> 90%, Up to 100%
|
|
Scanning Speed
|
>50Scans/S
|
|
Response Speed
|
<12ms
|
|
Touch Type
|
Horizontal Multi Dot Touch Screen (Vertical way is optional)
|
|
Touch precision
|
0.625mm
|
|
Minimum Touch object
|
≥5mm
|
|
Touch Intensity
|
Over 60,000,000 Single Point Touch
|
|
Operation System
|
DOS, WINDOWS9X/ME/2000/XP/2003/VISTA, LINUX
|
|
perating Voltage
|
DC 5V ±5%
|
|
Power Supply
|
Keyboard Serial Interface
|
|
Power
|
<1W (Current<200mA)
|
|
Communication
|
RS-232 Interface Port, USB Port
|
|
Vandal-Proof
|
Steel Ball (Diameter 63.5mm 1040g Weight) drop from 1040mm, No break
|
|
Temperature Operating
|
-41°C ~70°C Temperature Storage: -50°C ~85°C
|
|
Altitude
|
3000m
|
|
Noise
|
None
|
|
Life Time
|
>10 Year
|
Competitive Advantage:
Interactive experience for the machine,which attracts the attention from people.
Touch LCD AD player,Touch LCD Media Player,Touch LCD AD Board,Touch LCD monitor.
